Palisade 36 Gas Fireplace

Standard System

  • True clean face design
  • 2 safety screens
  • 20,000 BTU
  • Electronic ignition
  • Tempered glass
  • 100% safety shut off
  • Side vent only
  • Black porcelain panels
  • Remote control (Basic)
  • Black reflective fire glass and rock set

Palisade 36 Gas Fireplace

SKU PALISADE Categories ,

Description

The Palisade 36 –  See-Thru Direct Vent Linear Gas Fireplace

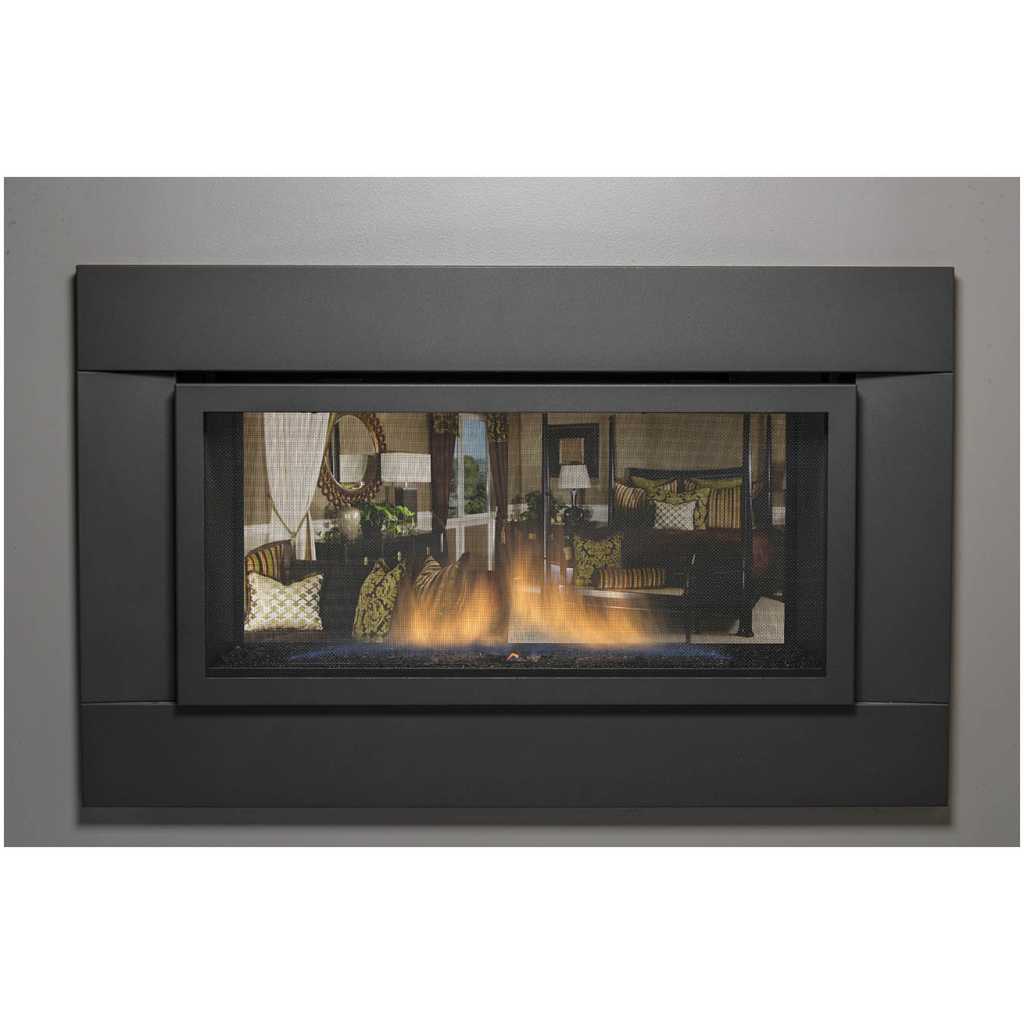

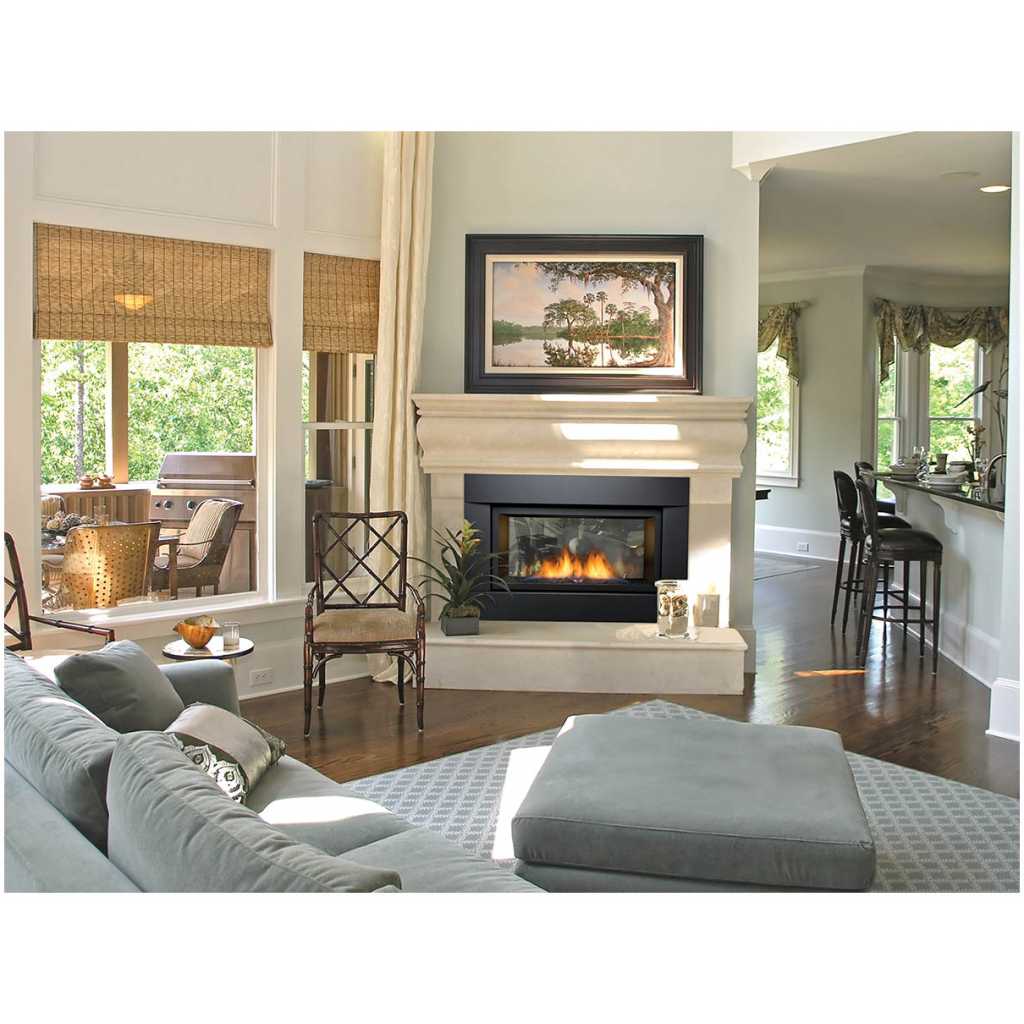

The Palisade see-thru direct vent fireplace is a perfect choice for today’s contemporary floor plans, allowing you a great view of your fireplace from more than one room.  Not only is the Palisade smart but sexy as well with its curved front face design.

This compact gas fireplace is only 10 7/8” deep but offers an impressive glass viewing area so you can enjoy even more flame.

The Palisade is available in Standard and Deluxe systems. Each fireplace comes with contemporary black porcelain panels, black reflective glass, and 3 piece rock set. This fireplace also comes standard to run on natural gas but is also available for liquid propane use. Safety barrier recommended.

KEY FEATURES

Deluxe System

  • True clean face design
  • 2 safety screens
  • 20,000 BTU
  • Electronic ignition
  • Tempered glass
  • 100% safety shut off
  • Side vent only
  • Black porcelain panels
  • Deluxe digital remote control
  • Fan kit
  • Modulating valve
  • Black reflective fire glass and rock set

INCLUDED MEDIA

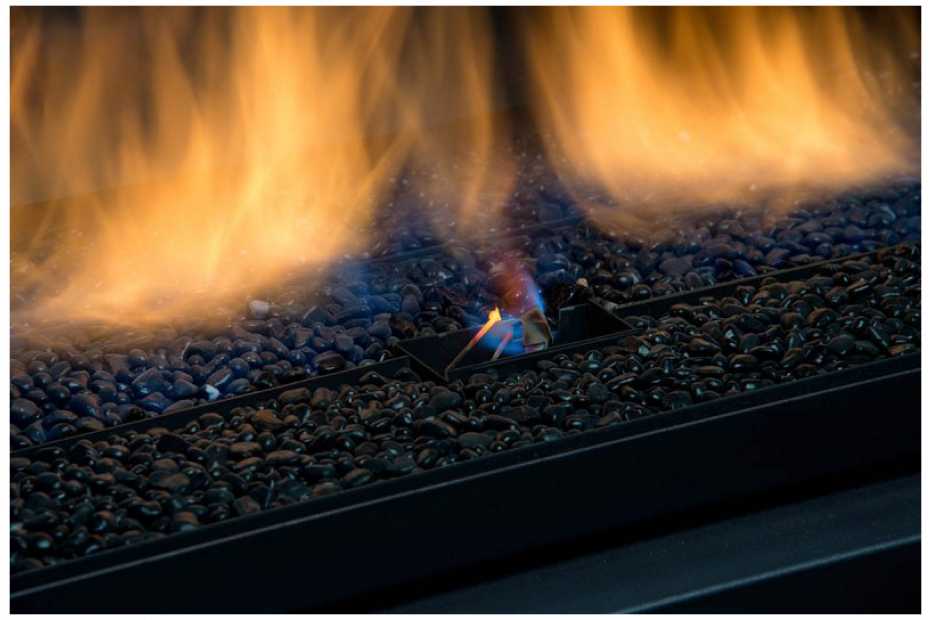

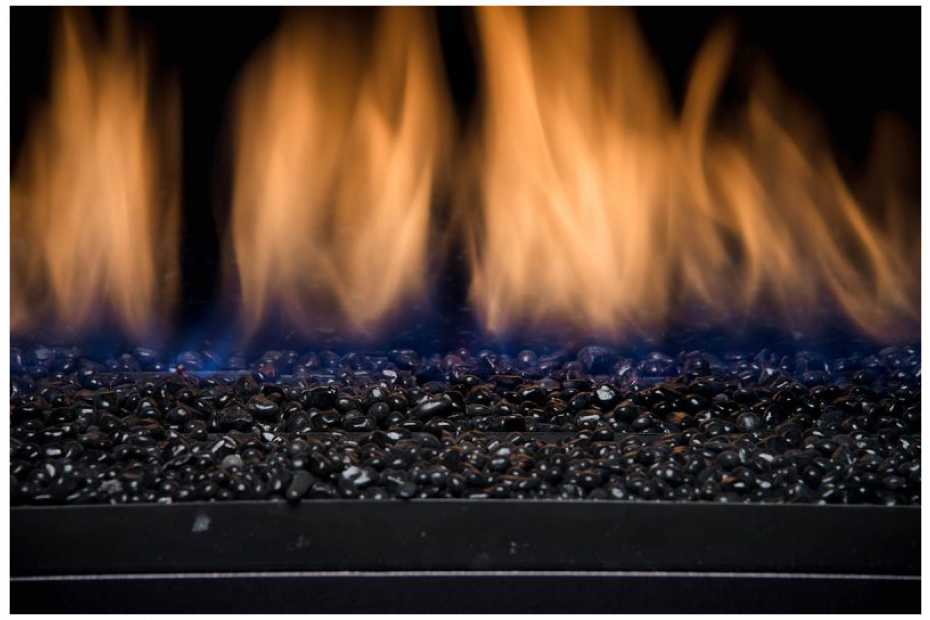

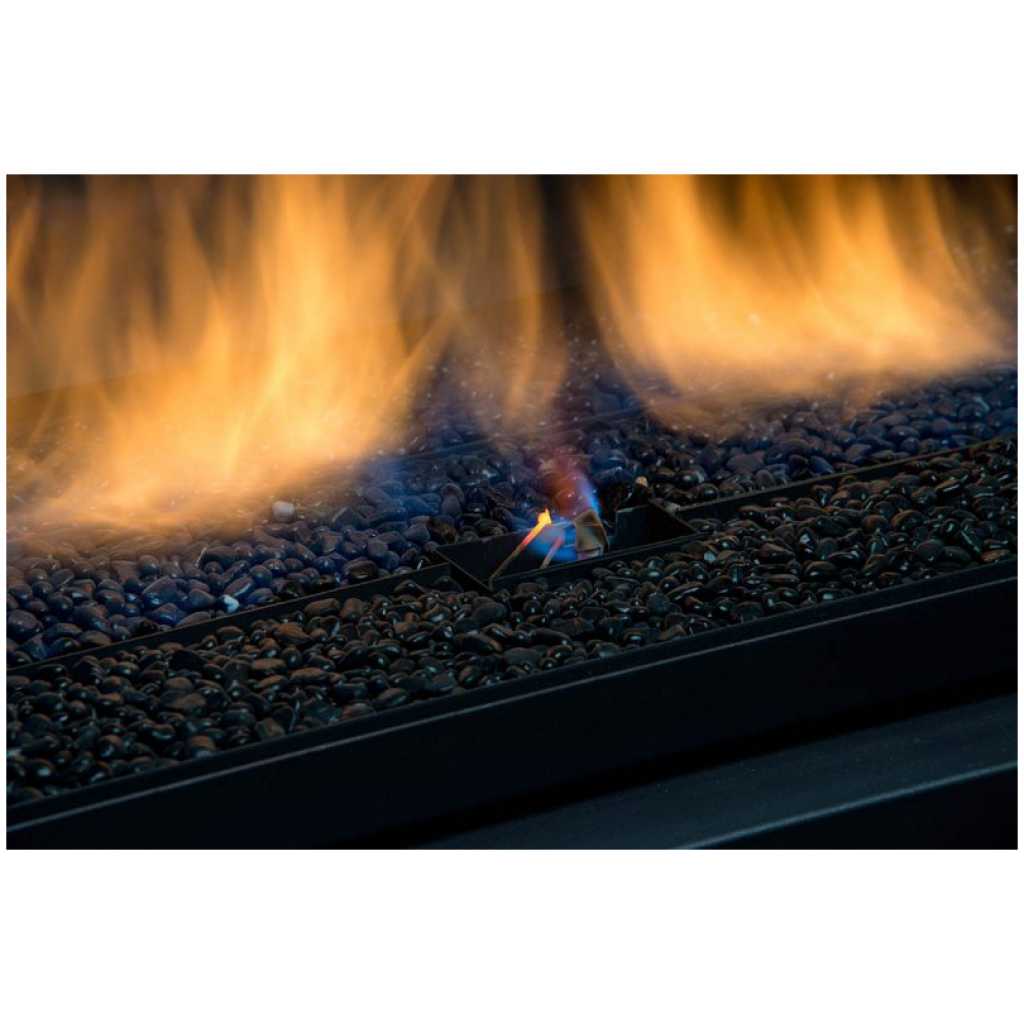

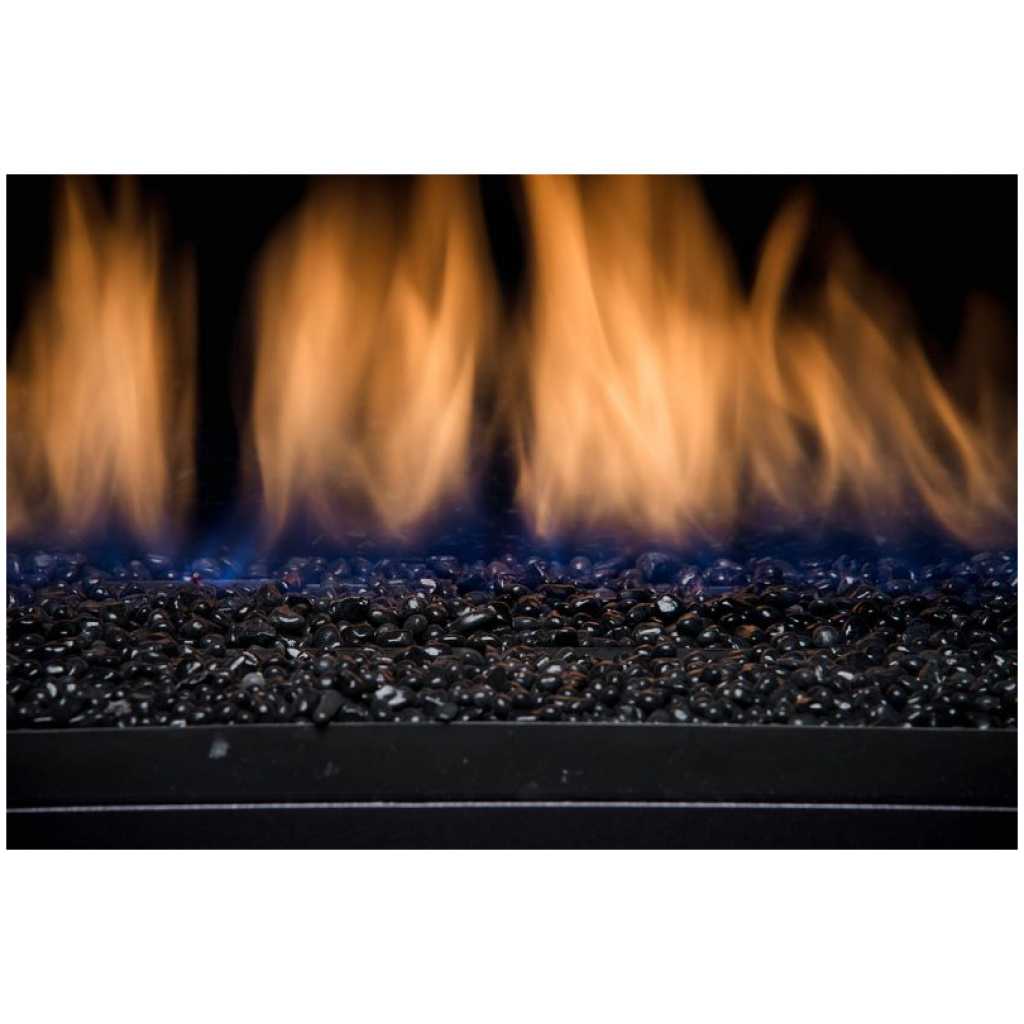

The Palisade gas fireplace comes with Black glass and 3 pieces of rock set

SURROUND OPTIONS
  • Black surround (without access panel) ‐ 41‐1/2″ W X 25‐3/4″ H
  • Black surround with access panel ‐ 41‐1/2″ W X 25‐3/4″ H
  • Stainless surround (without access panel) ‐ 41‐1/2″ W X 25‐3/4″ H
  • Stainless surround with access panel ‐ 41‐1/2″ W X 25‐3/4″ H

GLASS VIEWING AREA

15” H x 32-1/2” W

FUEL OPTIONS
  • Natural Gas
  • Liquid Propane

MODELS AVAILABLE:

  • PALISADE-36-NG – 36″ Natural Gas See-thru direct vent linear fireplace
  • PALISADE-36-LP – 36″ Liquid Propane See-thru direct vent linear fireplace
  • PALISADE-36-DELUXE-NG – 36″ Natural Gas DELUXE See-thru direct vent linear fireplace
  • PALISADE-36-DELUXE-LP – 36″ Liquid Propane DELUXE See-thru direct vent linear fireplace

VENTING

TERMINATION KIT

part numberdescription
TERM-KITTermination kit for 4″ & 7″ vent Includes: 1 wall thimble, Horizontal term vent, No flex include
HORIZONTAL FLEX TERM KIT – If 5′ of flex is required, use this kit:
part numberdescription
F942174054” X 7” Horizontal Flex Termination Kit w/ 5’ of Flex, Horizontal Termination, Wall Thimble

Includes Coaxial flex length, horizontal termination, wall thimble, screw package, sealant

10′ 4″ x 7″ flex length only – To extend SF94217405 an additional 10′ purchase this:
part numberdescription
SF942074104” X 7” Coaxial Flex, 10’
4″ x 7″ Couplings
part numberdescription
SF942074C4” X 7” Flex Extension Coupler Kit (1- 4” & 1-7”)

Includes 2 couplers, 1 for the inner flex and 1 for the outer flex

For Hard pipe only installations
part numberdescription
DURA-HARDAdapter to use hard pipe off of the fireplace
To convert from flex to hard pipe
part numberdescription
DURA-FLEXGalvanized adapter to go from flex to hard pipe

Manufacturer's Documentation

Gas Fireplaces Documentation


Warning WARNING:

This product can expose you to chemicals including lead, that is found in some copper fittings, which is [are] know to the State of California to cause birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov


DISCLAIMER: BLUE FLAMES
Blue flame lights will no longer be available on units built after July 01, 2021. The blue light has been replaced with a bright yellow, orange and red light combination to offer you a more realistic flame effect. We reserve the right to modify and upgrade our product at any time without prior notice.


DISCLAIMER

Flames and flame colors on the website may appear differently in real life. To view the most accurate representation of our regular flame sets, please visit your nearest dealer.


We reserve the right to update products, specifications and dimensions are subject to change. Please refer to the product manual to verify measurements and clearance requirements. All local building codes must be followed.
